CBD15-A3MC2

    Machine ModelCBD15-A3MC2
    Machine TypeElectric Pallet Truck
    Lifting Height200 mm
    Carrying Capacity / Load1500 kg
    Battery Voltage24 V / 70 Ah
    Driving Motor0,65 kW
    Lift Engine0,8 kW
    Fork Width160 mm
    Fork Outer Distance560 mm
    Fork Length1150 mm
    Total Width568 mm
    Load Center600 mm
    Turning Radius1400 mm
    Load Wheel DimensionsØ 80×64
    Walking Wheel DimensionsØ 210×70
    Aisle Distance (Pallet to Pallet)
    1000×1200 mm-diagonal)
    1850 mm
    Aisle Distance (Pallet to Pallet 800×1200 mm-longitudinal)1900 mm



    Click for the product pdf…

    Kategoriler:

    Açıklama

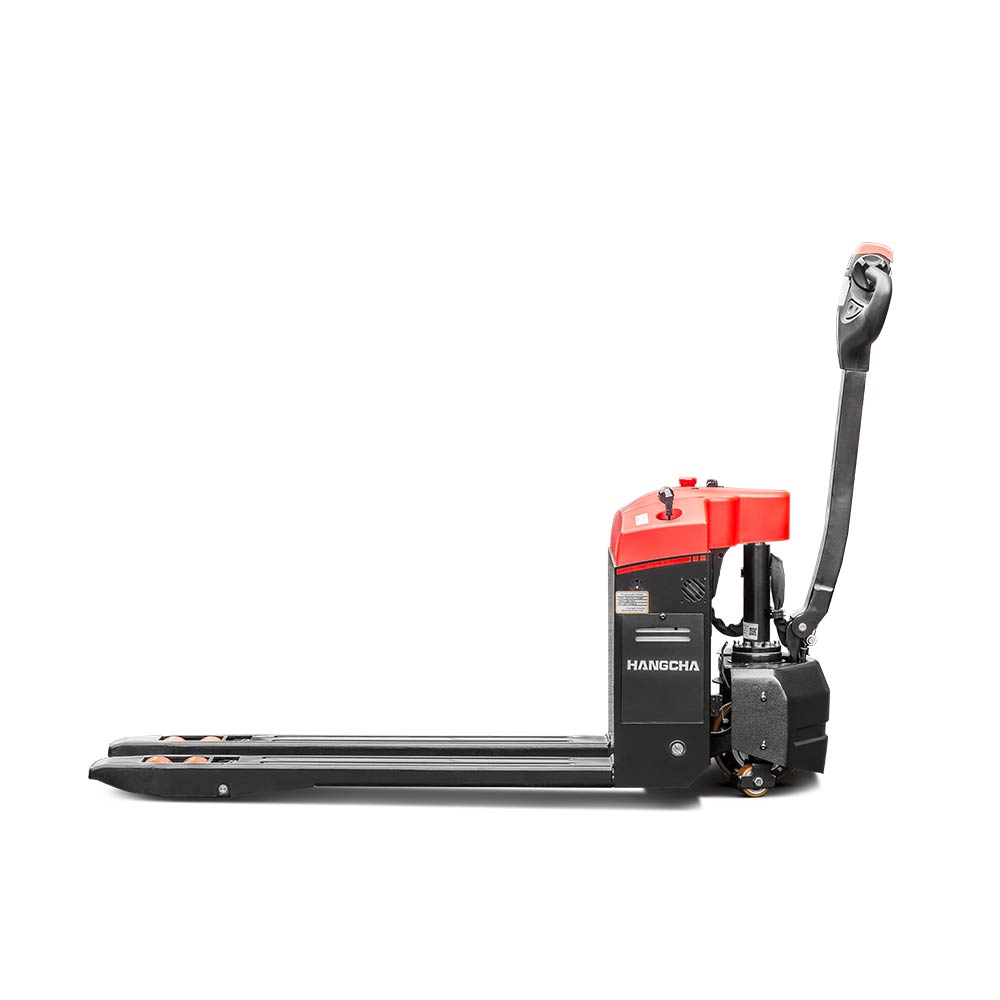

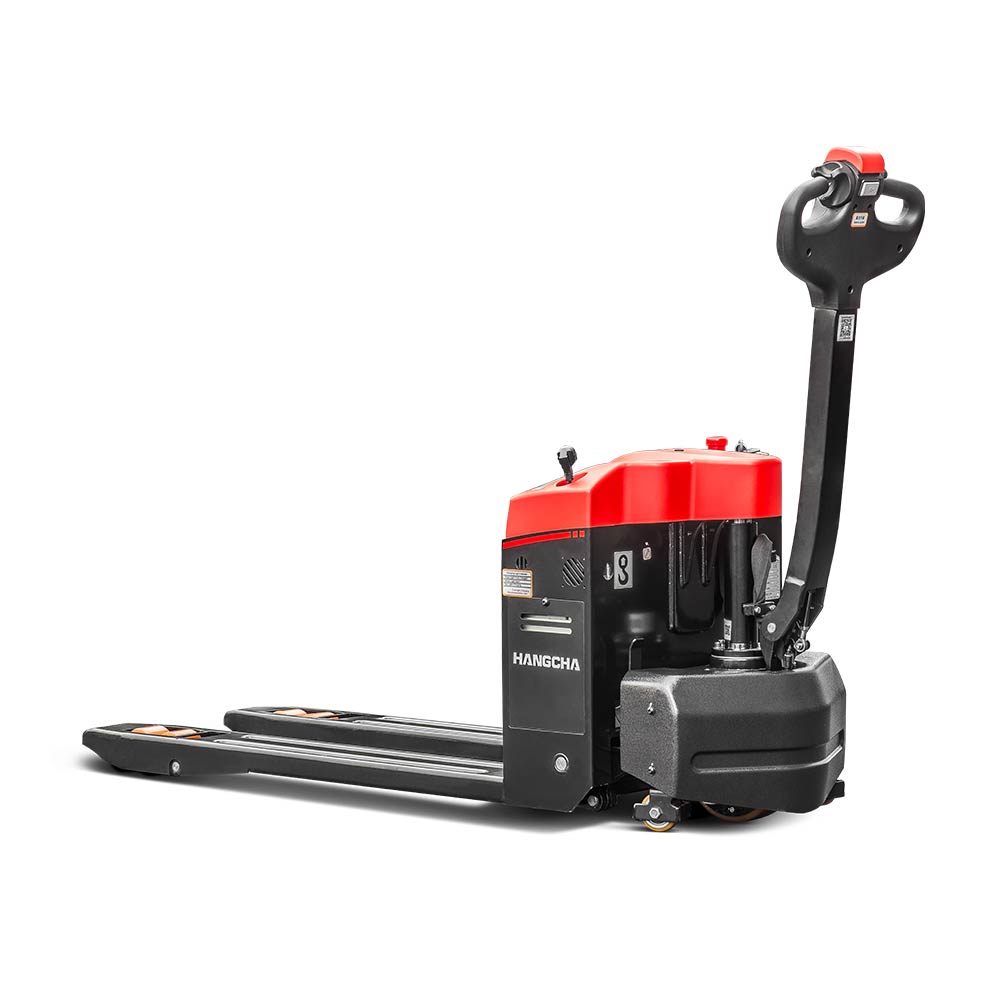

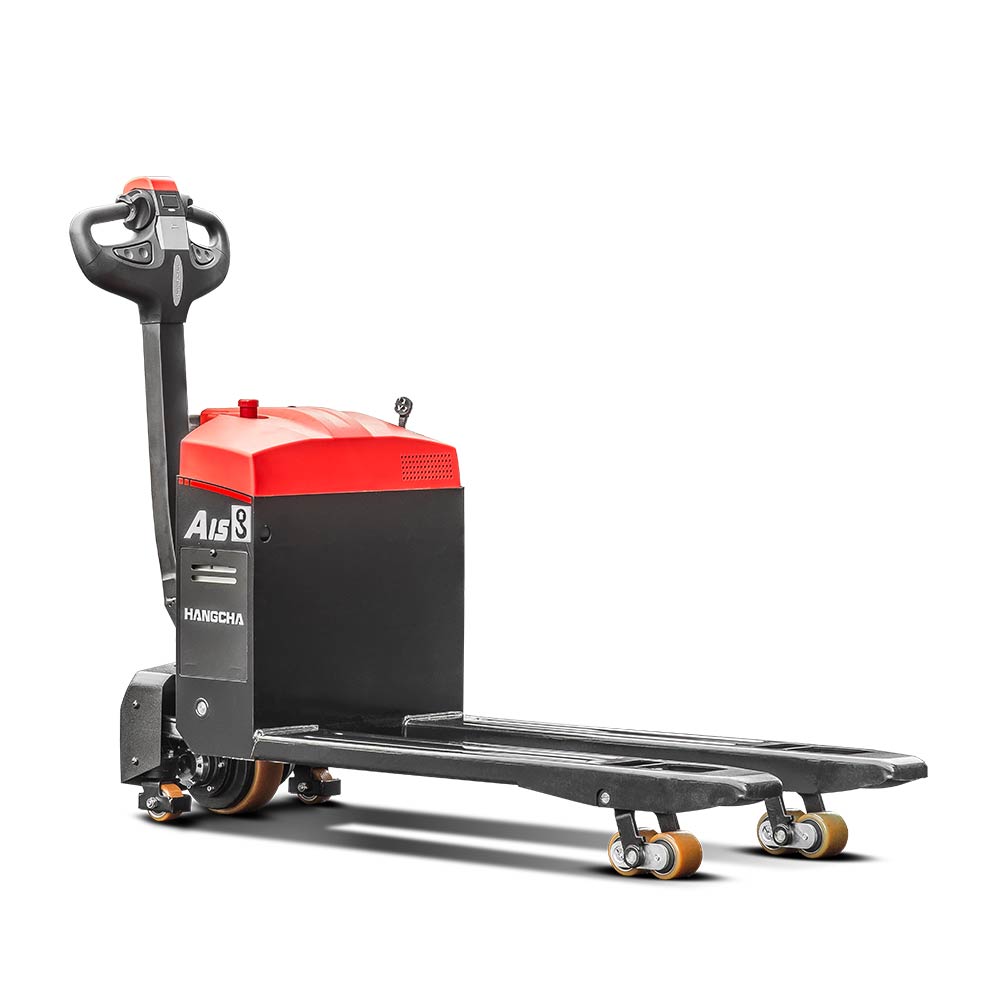

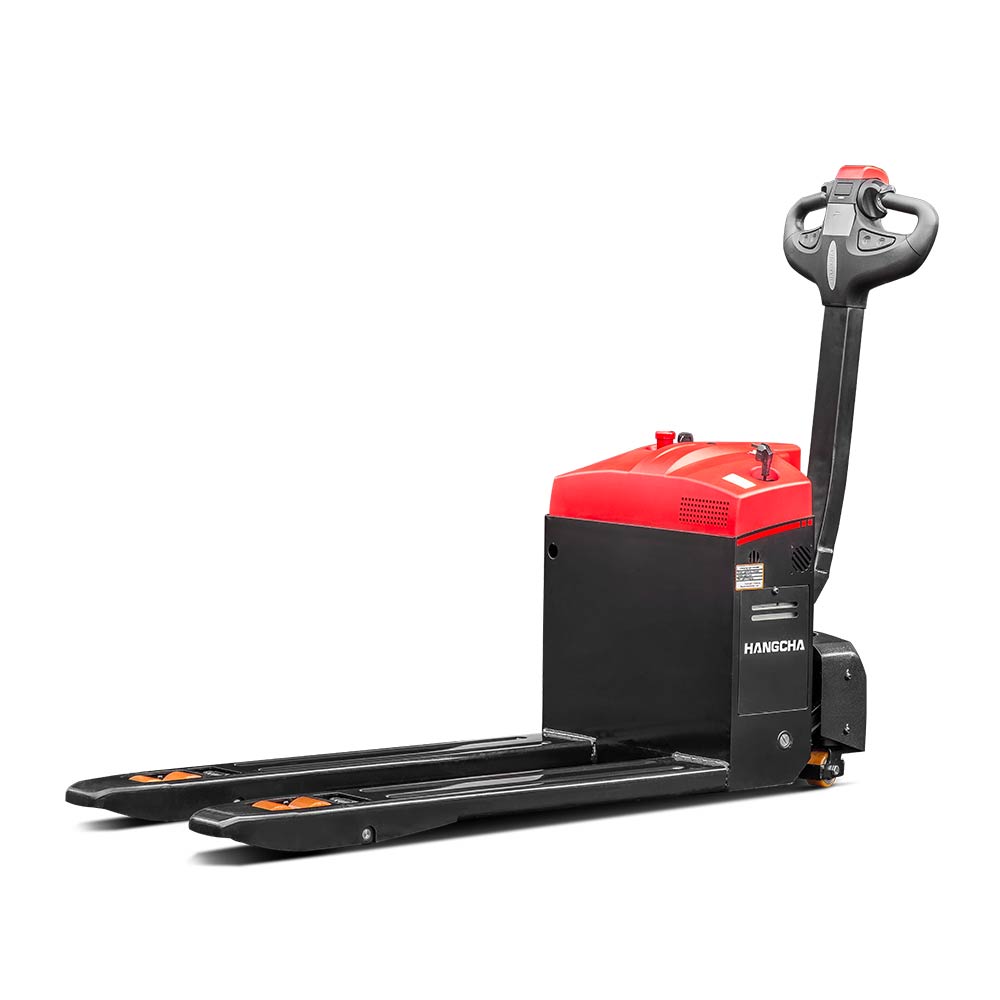

    CBD15-A3MC2 battery powered pallet truck series is designed to offer the ideal solution in challenging work environments with its performance and features. Its powerful battery and robust construction make this series suitable for use in different sectors such as supermarkets, warehouses and heavy production. While its compact design enables maneuvering in narrow spaces, you can achieve high efficiency even during long-term use thanks to the battery system. Its extremely durable structure and low maintenance parts minimize your costs, thus saving both time and money with its long life. CBD15-A3MC2 series has been developed to maximize your performance while lightening your workload.

    You can also benefit from the service and after-sales services we provide all over Turkey with the assurance of Makliftsan İş Makinaları.
